When choosing a palletizer robot Classification of palletizer

Barrel palletizer

Bag palletizer

When choosing a palletizer robot,

You will find that different types are suitable for different needs. First, there is the palletizer robot, which has a simple structure and strong body rigidity, suitable for handling heavier materials, such as mortar stacking robots. Next is the rotary joint type robot, which can be programmed through teaching, with a small body and a large range of motion, suitable for stacking multiple products simultaneously, such as bagged stacking robots. Finally, there is the gantry crane type stacking robot, which has a large working range and can handle heavier materials, making it very suitable for operations requiring a large range.

Regardless of whether you need a mortar stacking robot, a bagged stacking robot, or another type of stacking robot, choosing the right type of robot can improve production efficiency, reduce costs, and bring greater flexibility to your production line.

1.According to different mechanical structures, Palletizer robots include the following three forms: Cartesian, rotary joint, and gantry crane.

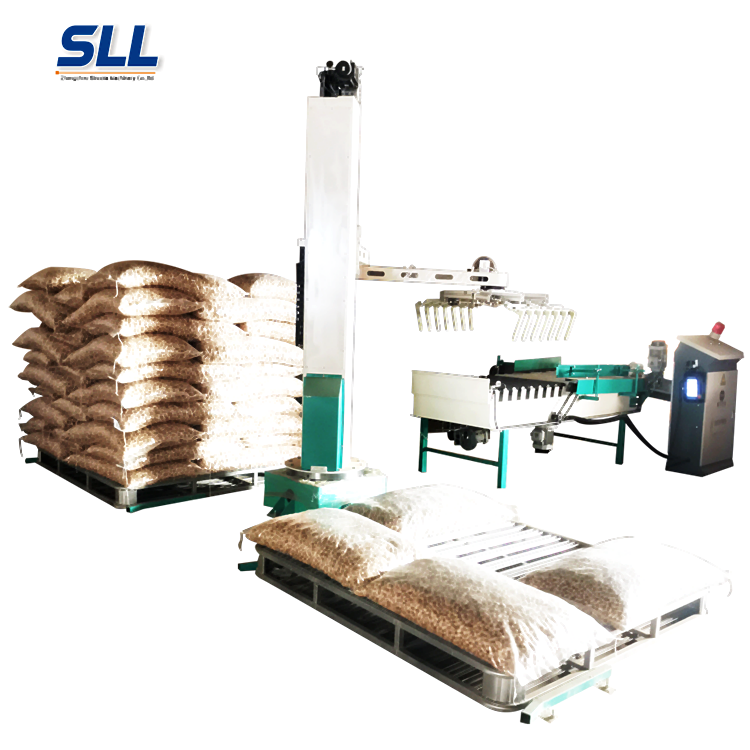

Palletizer Robot: Mainly composed of four parts: column, X-arm, Y-arm, and gripper, it completes the Palletizer of materials with four degrees of freedom (including three moving joints and one rotary joint). This form of Palletizer robot has a simple structure, strong body rigidity, and can handle heavier loads, making it suitable for Palletizer heavier materials.

2.Rotary Joint Type Robot: The Palletizer robot rotates around its body, including four rotary joints: waist joint, shoulder joint, elbow joint, and wrist joint. This type of Palletizer robot is programmed through teaching, where the operator holds a teaching box to control the robot’s movements according to specified actions, storing the motion process in memory for later automatic reproduction. This type of robot has a small body and a large range of motion, capable of flexibly handling multiple product production lines by simultaneously Palletizer one or several trays.

3.Gantry Crane Type: Installing the robot arm on a gantry crane is called a gantry crane type Palletizer robot, which has a large working range and can handle heavier materials.
