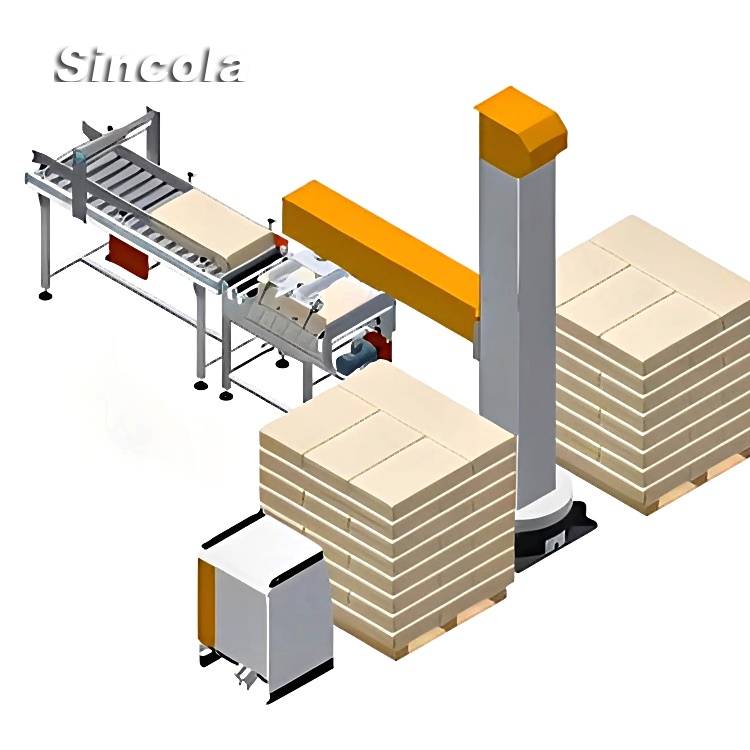

Carton column palletizer

Model:SDB-400MD

Palletizing efficiency: 400 times/h

Maximum load: 100kg

Maximum activity radius: 1950mm

Repeat positioning accuracy:+0.3mm

Working range:

S axis: soil 180 °

Z axis: 1800mm

R axis: soil 180 °

T -axis: soil 360 °

Applicable products: bag, box, block, cardboard, wooden board, etc.

Power supply power supply: 3*AC380+N

Palletizing height: 1600mm (other sizes can be customized)

Air source: 0.4-0.6mpa

Weight: 1500kg

The Carton column palletizer adopts a robot control system to achieve linear interpolation from point to point, making the movement smooth and fluid.

The teach pendant controls the industrial robot’s motion through key control and display functions, allowing operators to smoothly teach and control the motion of the positioner.

The stacking pattern can be pre-stored and flexibly operated for later additions.

It can complete the single column robot palletizer of bagged products according to the required grouping method and layers during operation.
