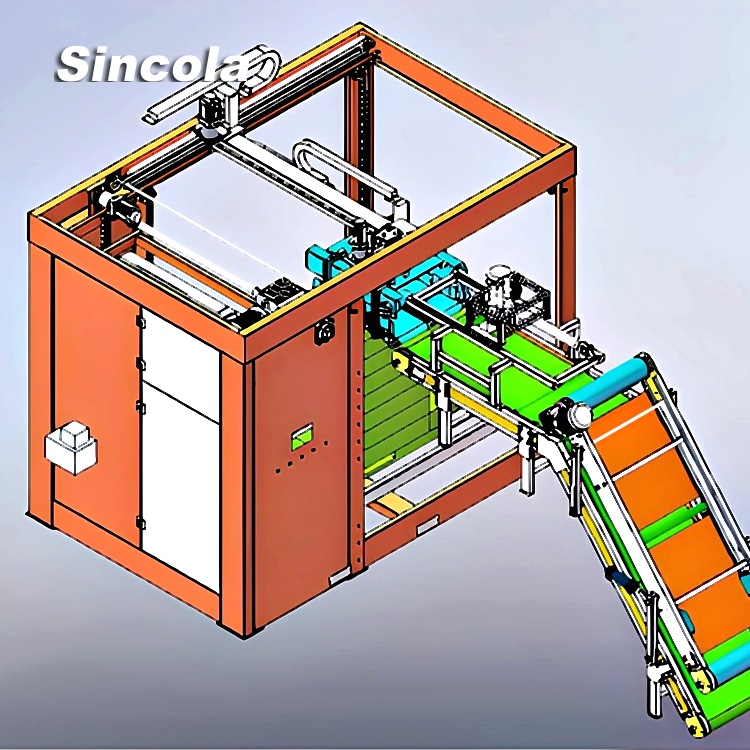

Dry mortar putty powder bag high level palletizer

Model:SGW-600MD
Output Capacity: 400-600 bags/h
Voltage: 380v50Hz three -phase four lines
Running power: 5KW-8KW
Size: 3700x2200x3000 (mm)
Number of palletal layers: 1-12 layers
Air-source pressure: 0.6-1.0MPa

The Dry mortar putty powder bag high level palletizer adopts a robot control system to achieve linear interpolation from point to point, making the movement smooth and fluid.

The teach pendant controls the industrial robot’s motion through key control and display functions, allowing operators to smoothly teach and control the motion of the positioner.

The stacking pattern can be pre-stored and flexibly operated for later additions.

It can complete the palletizing of bagged products according to the required grouping method and layers during operation.
