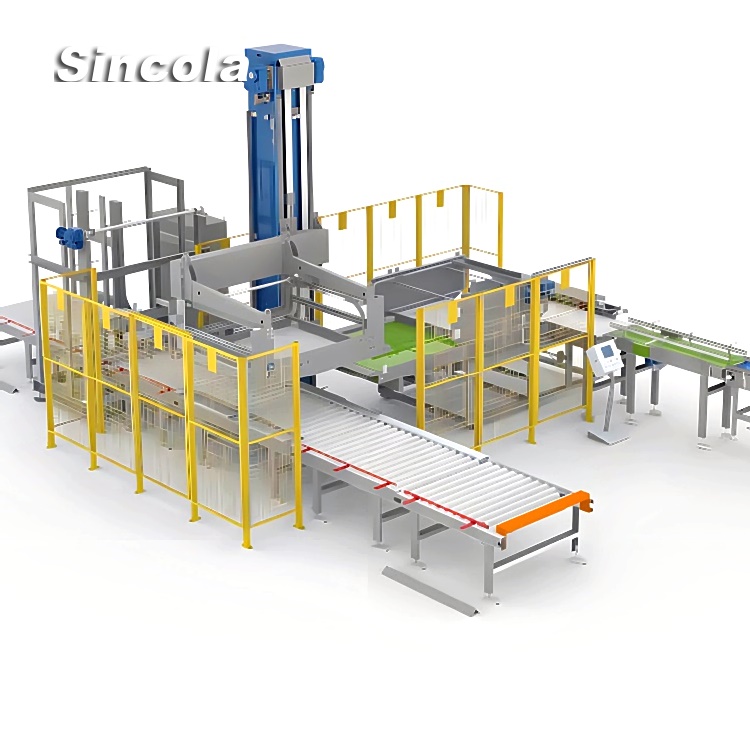

Grain bag column palletizer

Model:SDB-400MD

Palletizing efficiency: 400 times/h

Maximum load: 100kg

Maximum activity radius: 1950mm

Repeat positioning accuracy:+0.3mm

Working range:

S axis: soil 180 °

Z axis: 1800mm

R axis: soil 180 °

T -axis: soil 360 °

Applicable products: bag, box, block, cardboard, wooden board, etc.

Power supply power supply: 3*AC380+N

Palletizing height: 1600mm (other sizes can be customized)

Air source: 0.4-0.6mpa

Weight: 1500kg

Zhengzhou SIncola grain bag column palletizer The fully automatic grain palletizer can be widely used in automated unmanned factories, workshops, freight stations, docks, etc., in places with a large number of labor forces, in the feed industry, fertilizer industry, flour industry, cement industry, beer industry, etc. Palletizing of bagged, boxed and barreled products in the grain and oil industry, condiment industry, daily chemical industry, alcohol industry, bottled water industry, bottled water industry, beverage industry and other industries.

The automatic packaging and palletizing production line is an automated packaging and palletizing equipment composed of an automatic packaging scale, an automatic package sealing machine and an automatic palletizer. It realizes automatic weighing, manual bagging, automatic bag clamping, automatic filling, automatic conveying, automatic Folding and sewing bags, automatic palletizing and other tasks are widely used in chemical industry, building materials, light industry, fertilizer, feed, grain, minerals, etc. ​​​​
