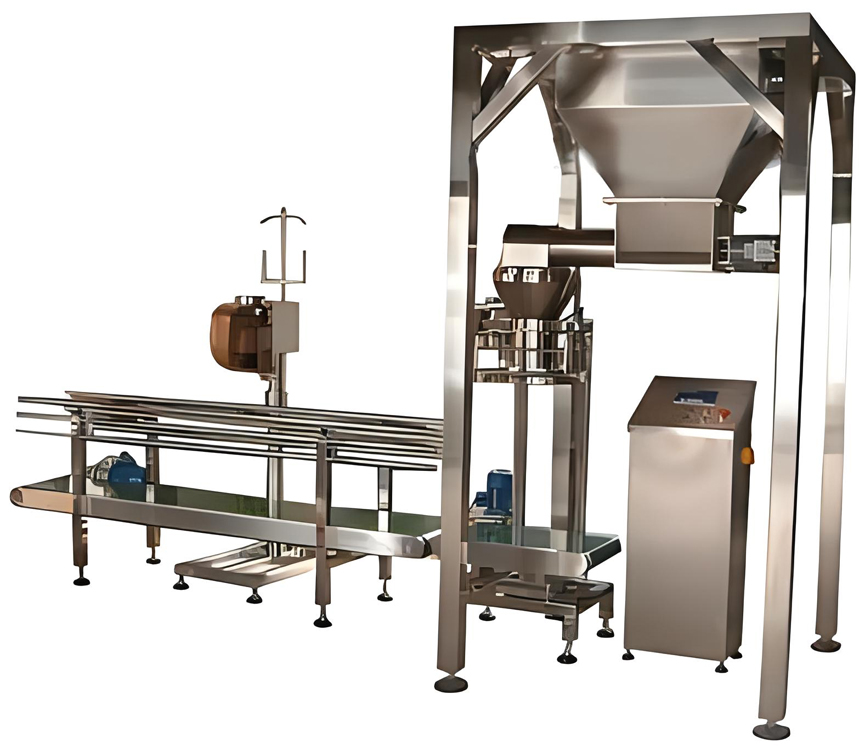

Open bag packing machine

Weighing Controller:

LCD concise operation interface

Automati Zero-Tracking function

20 recipes can be stored for different weighing capacity.

Adaptive optimization algorithm to accelerate working pace and increase accuracy

Discharge Port:

Ring folder bag institutions, make the bag with the feed opening sealed tightly, and can reduce dust spillover

Use Air pressure cylinder as power, longer service life.

Discharge port can be customized to accommodate more bags

Conveyor Belt:

The power of the motor is 0.37 Kw, brass core motor, more durable

The width of the belt is 400mm, the length is 3m

Height can be adjusted according to the bag, speed is 5-20 m/min

Automatic Sewing Machine:

Suitable for woven bags, kraft paper bags

Double thread sewing,  Maximum sewing thickness 8mm

It detects bags’ position by photoeletric sensor and automatically disconnect
